- Place of Origin: Guangdong, China
- Brand Name: SANHE

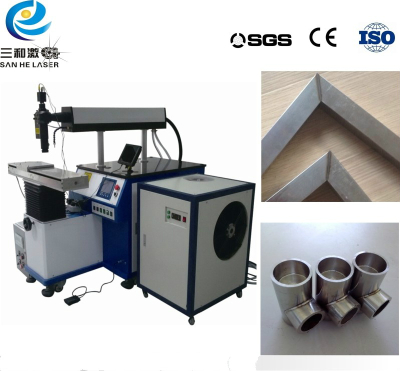

- Model Number: 3HE-300W laser welding
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
Product Description
Main advantages:
New international cavity design
United Kingdom technology of combined cavity design, has higher electro-optical conversion efficiency;Full cavity design for partial cooling and cooling treatment, lasers last longer;Typical maintenance design, changing lights from dimming, routine maintenance easier.
System design
Split design, modular, suitable for a variety of industry applications portfolio;Humanized design, LCD displays, set button operation, easy to operate;Provides industry-specific solutions, and offers a wide variety of mature private sector grip and control, more convenient to use;Can be combined with production-and better adaptability;Can be combined with air tight boxes to meet the special product welding requirements;Meet the international laser safety standard and high-voltage electrical safety standards.
Automation design
1, CNC motion system
CNC2000 numerical control system software based on Windows, using DSP technology development, hardware with PCI interface, 4-axis, the system has complete features:Program verification feature,MDI feature,Absolute incremental programming(G90,G91),Imperial, metric, the number of pulses programming(G20,G21,G22),Mirroring features(G24,G25),Zoom functions(G50,G51),Automatic, jogging, walking, hand, zero return function,Quickly locate(G00),Linear interpolation(G01),Circular interpolation(G02,G03),Pause(G04),Thread function(G33),Sets/returns the electrical origin(G29,G30),Back backlash compensation, beam radius compensation(G40,G41,G42),Rotation feature(G68,G69),Subroutine,Static/dynamic simulation,Automatic deceleration control,Maximum no-load step frequency:200000Hz,AutoCAD drawing file conversion (PLT, DXF files).
2, Numerical control laser power supply
LCD display power is controlled by single-chip digital power supply,Users of multiple laser waveform and parameter programming through keyboard, can repeat work for the lamp operating current, frequency, pulse width and spot diameter to implement intelligent control,With stable work, control is better, the characteristics of small volume, easy to operate, easy to maintain.
Range of application:
Hydraulic tappet sealed welding;Filter seal welded;Spark plug welds;Valve push rod welding;Bumper air bag detonators sealed welding;Crankshaft or cylinder heat treatment
Electronics industry:Cell phone batteries, battery shell seal welded;Solid state relay sealing;Connector data cable welding
Electronics industry:Cell phone batteries, battery shell seal welded;Solid state relay sealing;Connector data cable welding
Hardware industry:Tools, accessories, tableware, lighting
Special types of trades:Special types of trades;Navigation sensor seal welding;Weapons welded
Technical parameters:
Model | 3HE-300W | 3HE-400W |
Host system dimensions | 1550X650X1200MM | 1550X650X1200MM |
Cooling system size | 820X580X1050MM | 820X580X1050MM |
Machine power consumption | 10KW | 15KW |
Electrical requirement | 220V/50Hz/60A | 380V/50Hz/60A |
Aiming and positioning | CCD and red light | CCD and red light |
Travel of table | 300X250X200MM | 300X250X200MM |
Laser material | ND:YAG | ND:YAG |
Maximum laser power | 300W | 400W |
Laser wavelength | 1064nm | 1064nm |
Smallest spot diameter | 0.2mm | 0.2mm |
Weld minimum weld pool | 0.1mm | 0.1mm |
Welding depth | 1.5mm | 2.5mm |
Pulse width | 0.3ms-20ms | 0.3ms-20ms |
Pulse frequency | 1-100Hz | 1-100Hz |
Control system | PC or PLC | PC or PLC |
Company Information
Dongguan sanhe laser technology limited company is a company engaged in the development, production and sales of well-paid technology enterprise, is located in Dongcheng, Dongguan city industrial zone, with a modern production plant, the strength, talent is sufficient, have a professional research and development and production team.Company since its inception, the introduction of advanced laser technology and convergence with international laser industry solutions, and well-known institutions and optoelectronic Research Institute maintains a long-term good relations of cooperation, in the field of energy development and application of new laser bold in innovation, the pursuit of excellence.
Sanhe laser company have launched a series of large power laser cutting series, the laser marker series, industrial laser equipment, such as laser welding, the company relies on excellent quality and leading-edge technology, to meet the requirements of different lasers use area.Equipments are exported to the United States, Korea, India, Viet Nam, Japan, Malaysia and many other countries.
Why buy from us?
We order all our products directly from factory, no agents,no middleman, which guarantee the lowest prices for our customers.
We have 2 large warehouses & nearly one million worth of stocks ready to go.
We are looking for distributors USA, Australia and some area around the world, contact us for more detail.
For group buy for schools and club purchases up to a certain amount, we will offer a great discount.
Customers can choose to join our membership program for reward points or discounts and we offer VIP sales or events for our members.
Please let us kown:
1.what kind of machine you need
2.the information about the material you want to prcess
3.what is your business scope?Are you end user or distributor?
We will be very happy to help you in any way we can.
- Place of Origin: Guangdong, China
- Brand Name: SANHE
- Model Number: 3HE-300W laser welding
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
Technical parameters:
Model | 3HE-300W | 3HE-400W |
Host system dimensions | 1550X650X1200MM | 1550X650X1200MM |
Cooling system size | 820X580X1050MM | 820X580X1050MM |
Machine power consumption | 10KW | 15KW |
Electrical requirement | 220V/50Hz/60A | 380V/50Hz/60A |
Aiming and positioning | CCD and red light | CCD and red light |
Travel of table | 300X250X200MM | 300X250X200MM |
Laser material | ND:YAG | ND:YAG |
Maximum laser power | 300W | 400W |
Laser wavelength | 1064nm | 1064nm |
Smallest spot diameter | 0.2mm | 0.2mm |
Weld minimum weld pool | 0.1mm | 0.1mm |
Welding depth | 1.5mm | 2.5mm |
Pulse width | 0.3ms-20ms | 0.3ms-20ms |
Pulse frequency | 1-100Hz | 1-100Hz |
Control system | PC or PLC | PC or PLC |
